SMB

Add or edit a connection to a shared directory on a local network. Once connected, browse the share and upload, download, create, rename, or delete files.

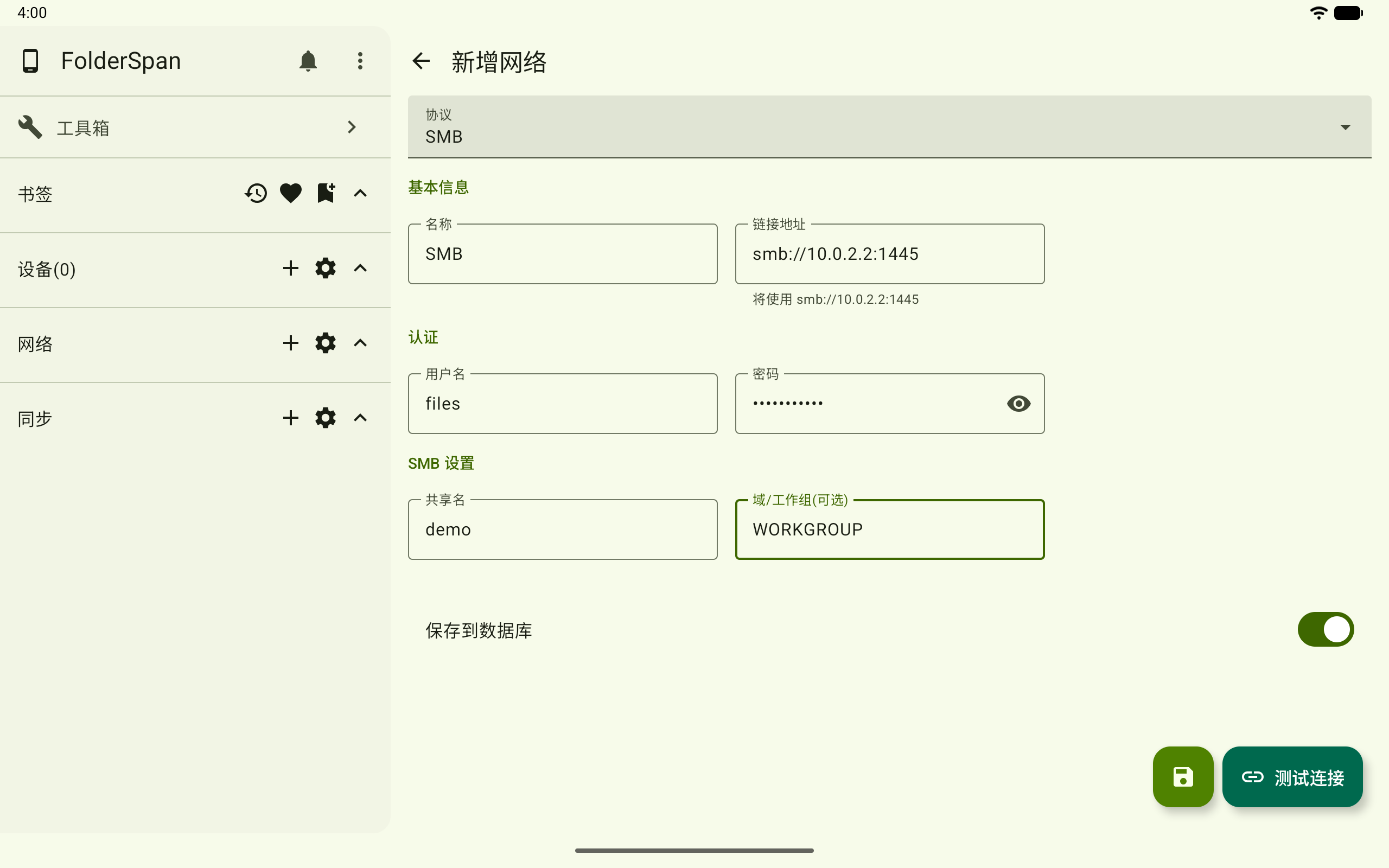

Add an SMB connection

Page layout​

  1. Top bar: New network or Edit network, with a back button on the left.
  2. Protocol: choose SMB when adding; an existing connection's protocol is fixed.
  3. Basic information: Name and Connection address.
  4. Authentication: Username and Password.
  5. SMB settings: Share name and optional Domain/workgroup.
  6. Actions: save at the bottom right, or use Test connection to validate the fields.

Fields​

  • Name: the name shown in the network list; required when saving.
  • Connection address: the SMB host; required. Invalid formats show an error. The default port is 445 if omitted.
  • Username: the user allowed to access the share.
  • Password: that user's password.
  • Share name: the shared directory name. Leave empty if it is included in the address; the parsed name is used.
  • Domain/workgroup (optional): enter it when domain or workgroup authentication is required.
  • Save to database: shown for new connections; disable it for a temporary connection only.

Address formats​

The address can contain only a host or also a share name. If the share is included, the separate Share name field can be empty.

  • server.local
  • server.local/media
  • smb://server.local/media
  • \\server.local\media

Operations​

1. Add an SMB connection​

Select Add in network management and choose SMB. Enter the name, address, and credentials. Fill in Share name if the address does not contain it.

Fill in an SMB configuration

2. Test the connection​

Enter the address, share name, and credentials, then select Test connection. A success message indicates the share is readable. Otherwise, a failure reason is shown.

3. Edit a connection​

Choose Edit from its network-list menu. Update the host, share, credentials, or optional domain/workgroup, then save.

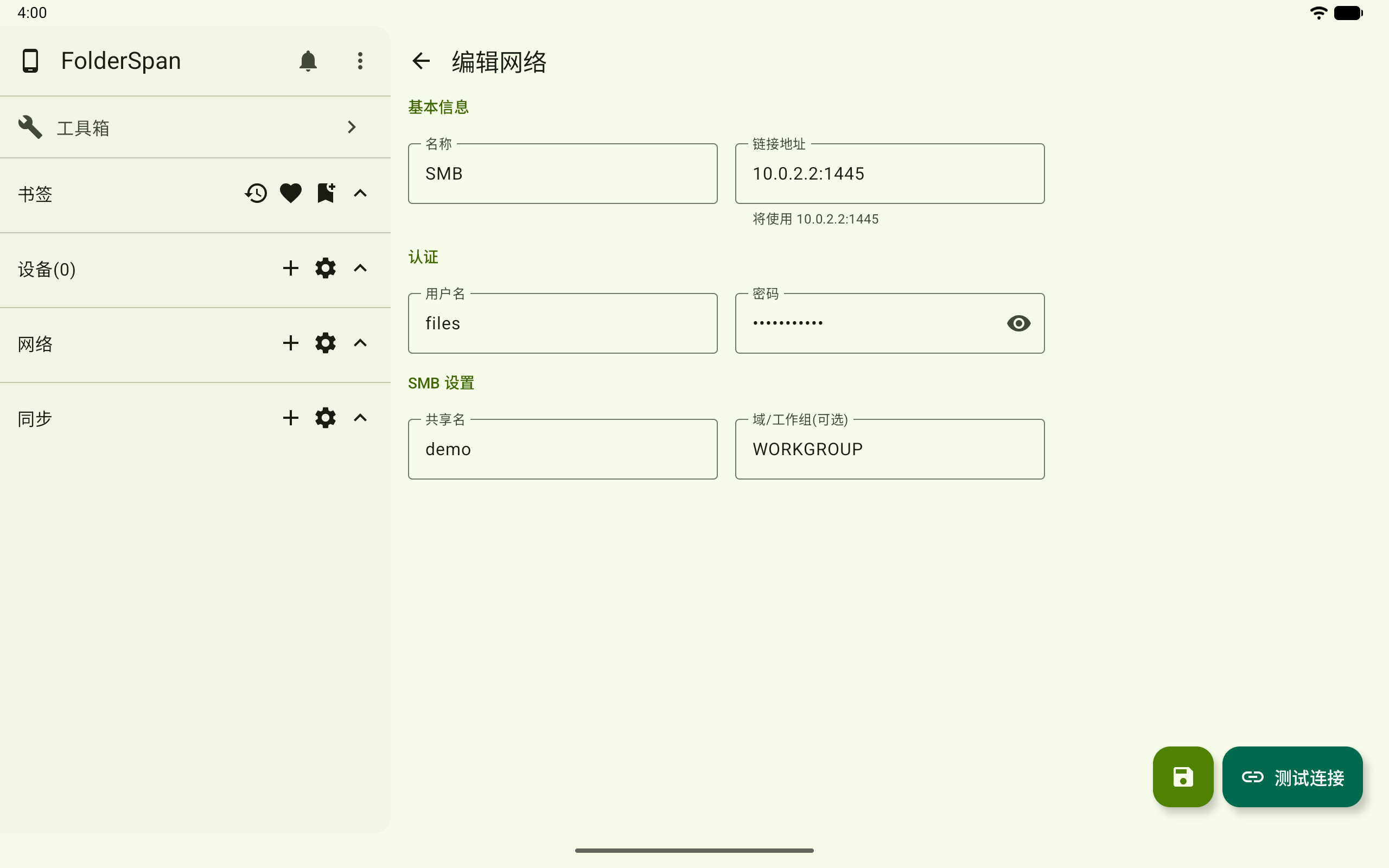

Edit an SMB connection

4. Connect and browse​

Return to network management, select the SMB entry, and confirm to open the share.

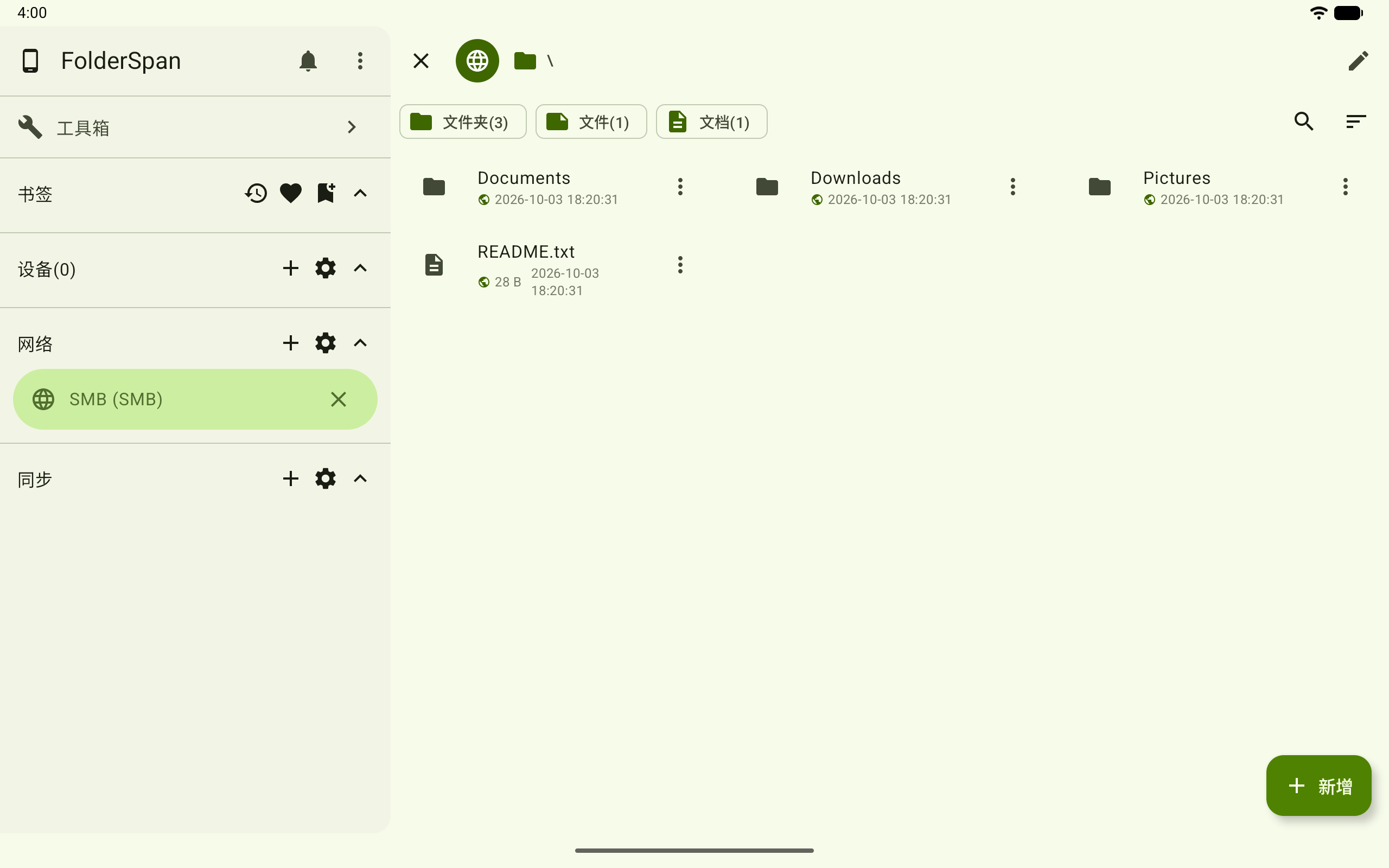

Connected SMB directory

5. Create a remote folder​

After connecting, select the bottom-right add button. Enter a name, choose Folder, and select Confirm.

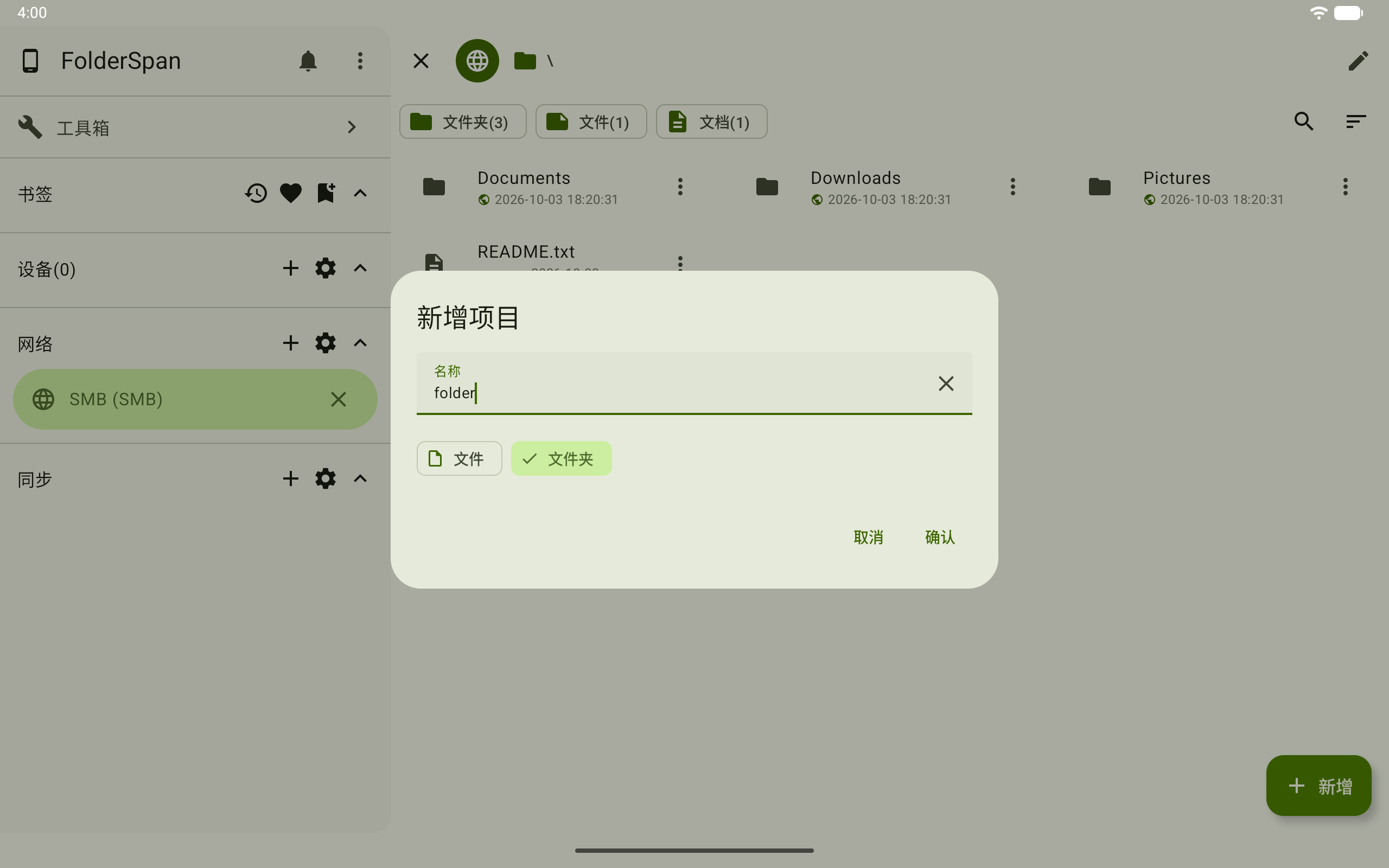

Create an SMB folder

The new folder appears in the current SMB directory after creation.

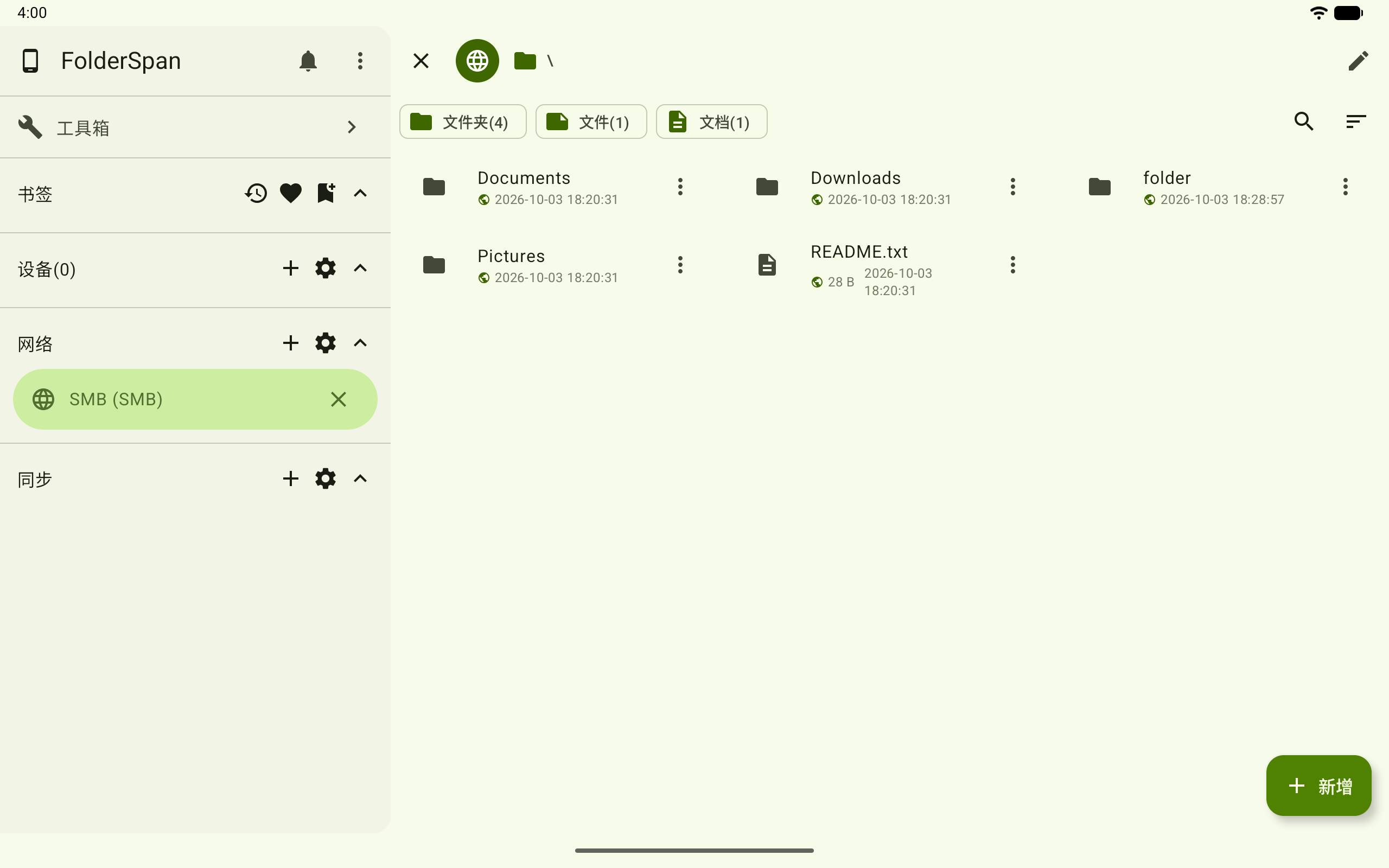

New SMB folder in the list

  • Connection troubleshooting: check addresses, authentication, and permissions for each protocol.
  • Files: browse remote directories and work with files after connecting.
